UAV Detection and Jamming
MODEL:EAGLE-360

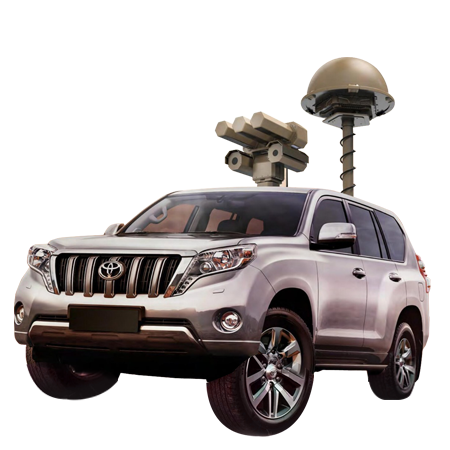

Eagle-360 is a cross-vehicle compatible, automated 360° detect and defeat device. It provides 360° awareness and protection using integrated sensors to detect and disrupt UAS moving at any speed – suitable for mobile operations, on site surveillance and on the move missions.
Eagle-360 is a cross-vehicle compatible, automated 360° detect and defeat device. It provides 360° awareness and protection using integrated sensors to detect and disrupt UAS moving at any speed – suitable for mobile operations, on site surveillance and on the move missions:
-
- Open protocols for integrating with RF jamming and other detection systems
- Fully wideband scan from 300-6000Mhz
- Real time drone detection
- Ranger over 3km
- Jamming auto control (PTZ support)
- High tracking accuracy
- Capability to track the operator who controls the drones
- System is ready for use within a few seconds
- 360 degree coverage detection
- Control over Ethernet
- 24/7 monitoring and recording
- Built in compass, and automatic configuration once start up.
- Analyzing and direction finding to detect the drones, calculate the Azimuth, manufacturer brand, model number, frequency
| Frequency Range | 315-6000Mhz |
| RF Detection Signals | Drone, remote; WIFI IEEEE802.11a,b,n,g |
| Detection Ranger | Over 3 km up to environment |
| Antenna Type | 360 Log periodic |
| Antenna | 6-8 dBi |
| Bandwith | 180Mhz |
| Receivers | 6 |
| Detection time | 2s |
| Simultaneous Drone detection | 18 Units |
| Jamming auto control | 6 Bands: 10-50W/ bands, DDS (PTZ support) |

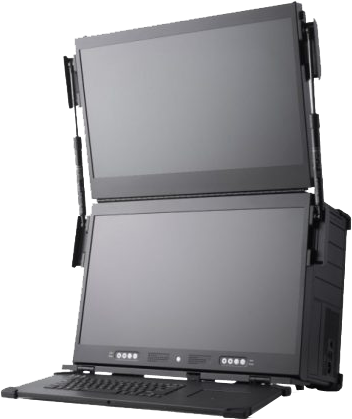

| Monitoring Computer Weight | 14kg |
| Power Supply | 100-220 VAC/200W |
| Operating Temperature | -30 to +70 degree |
| Environment | IP65 |
