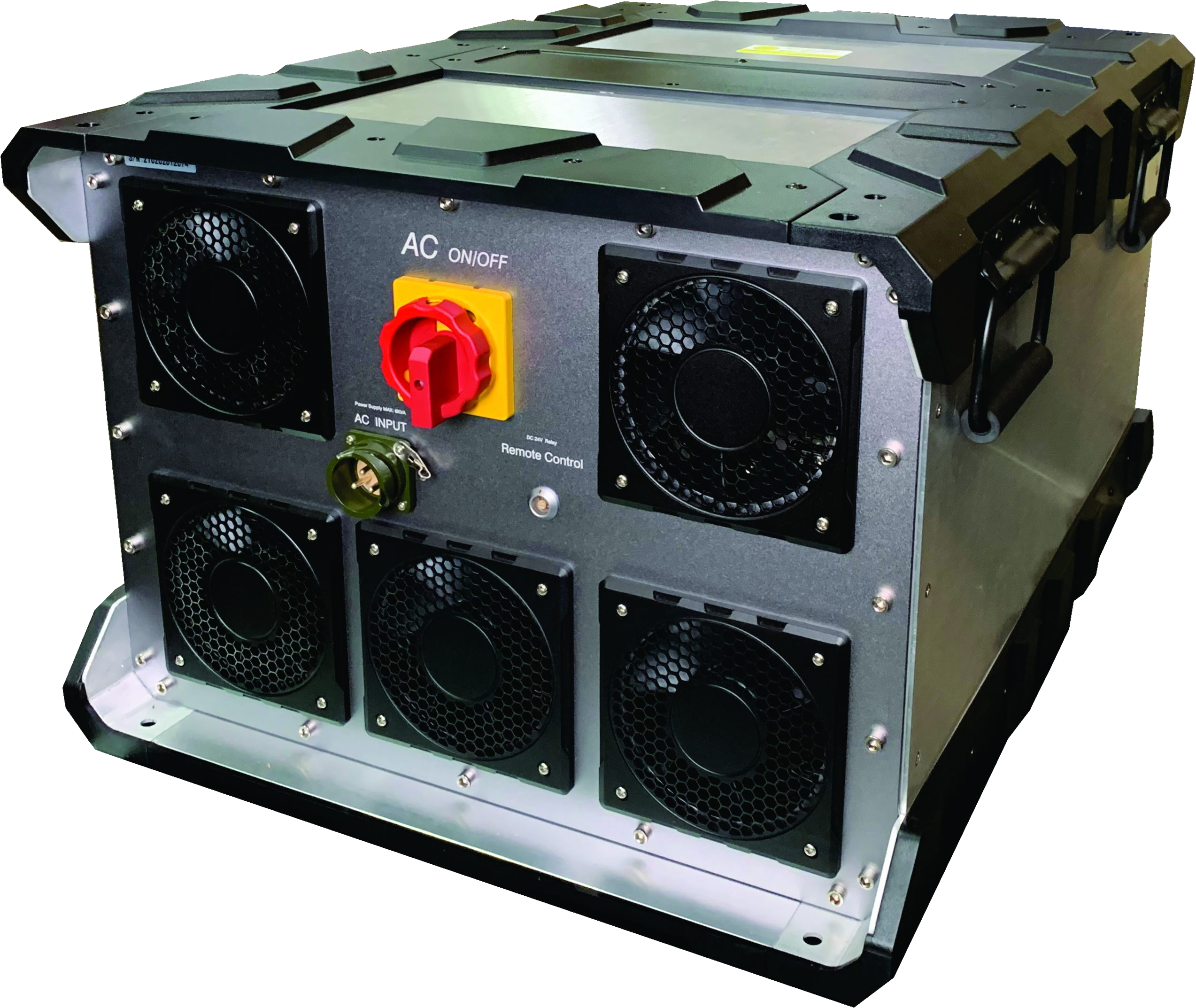

High-Power Multi-Band Vehicle Jamming System
MODEL: DGJ1650S
DGJ1650S, High Power DDS Convoy Jamming System, implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system
DGJ1650S can cover, continuously and simultaneously, all the RF communication Frequencies 0MHz ~ 3600 MHz and 5100 – 5800 MHz which are most commonly used by terrorists to detonate road-side bombs (RCIEDs). Adopting the latest jamming technologies, DGJ1650S features ultra-high RF transmission power 1660 watts, making a bigger shielding range around the vehicle.
-

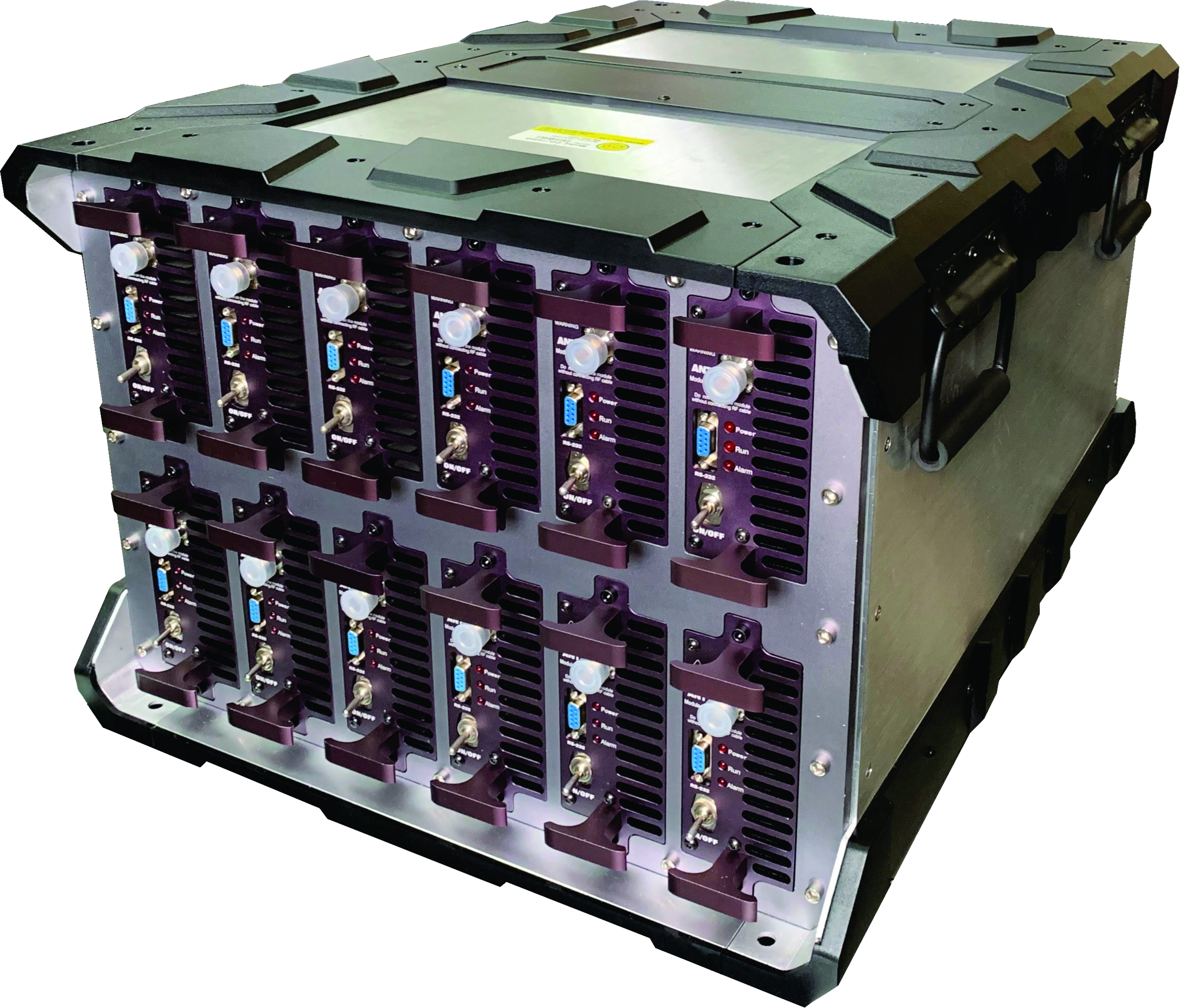

- Designed with ultra-broad band frequency bands, 20-3600 MHz, 5100-5800 MHz and 5G (future). Ability to operate continuously 24/7, 24 modules plug and play design, facilitate for future power upgrading, change and maintenance
- Jammer distance effective up to 50-70m, power of network signal<-80 dB and light of sight
- Any ruin on the modules never interfere the normal operating for other modules
- American Mil-spec standard case, shockproof and drop-resistance, available for the vehicle running in a worse field environment
- Up to 24 frequency bands. All Jamming Modules Designed by DDS technology
- Operators are able to regulate the working frequency band and output power of each module through the software. Configuring a specific frequency band can ensure the internal communication in emergency
- System operation can be performed in the driver’s console unit
| Total RF Power | Max. 1700W |
| Jammer Module Number | 24 modules and 1 modules 5G (update bandwidth future) |
| Channel Number | 80 Bands |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR, Over-voltage, Over-current, Over- temperature |
| Jamming Source | Digital Signal Source Technology DSS, continuous |
| Remote Control | Full System Operation Control |
| Antenna Type | Omni directional Antennas/ Directional Antennas |
| Total Power Consumption | Maximum 5000watt (24 modules) |
| Equipment Net Weight | Approx.180kg |
| Equipment Size | 70*105*58 cm |
|
Operating Temperature Range |
-10°C ~ +65°C |
| Operating Humidity | 5% up to 80% |
| Power supply |
Voltage: 220VAC or 24-28 VDC (included: Main power supply, Generator, Battery). Protection: Over-load, Over-current, Over- heat, Anti- Heat. |
